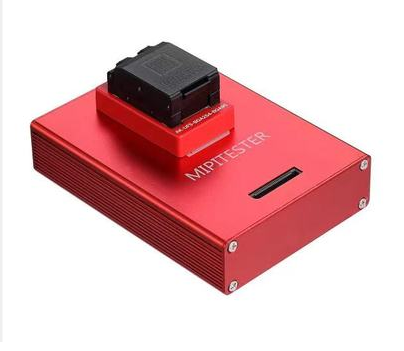

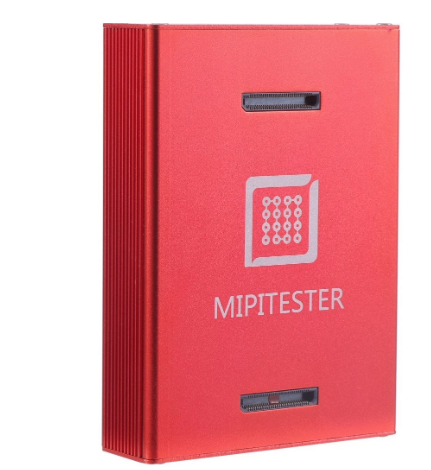

Original MOORC MIPITESTER MiPi Box High Speed Programmer Support for EMMC and UFS Function Item NO.: 1600655872938

s

upport high speed USB3.0 and USB2.0 computer transmission

UFS/UMCP data transfer speed

Support UFS 2.0 2.1 3.0 3.1 version control upgradable

HS-G2 high speed mode 80-130MB/s (write) / 100-180MB /s(read)100MB or above, USB3.0+SSD high speed SSD is required

UFS ISP Flying Line Mode PWM-G1 6-15MB/s (Read and Write)

EMMC/EMCP data transfer speed

EMMC 4.5 5.0 5.1 version is supported

HS200 80-120MB/s (write) / 120MB/s (read)

EMMC ISP 5-15MB/s (read and write)

Hardware support to upgrade NAND PCIE NVME NOR SPI I2C Flash

Intelligent voltage output (VCC, VCCQ) 1.1V-3.3V intelligent short circuit protection

Support UFS/UMCP dedicated Descriptors, Attributes, Flags and other chip initialization and advanced Settings, LUN cutting, read and write and specify boot area; EMMC/EMCP User Area and BOOT1/2 reading and writing, advanced RPMB, GPP reading and writing and Enhanced Area setting are also supported

MiPi Box Package Content:

1.MiPi Box - 1 pc

2.MiPi emmc ufs isp - 1 pc

3.MiPi cable - 1 set
